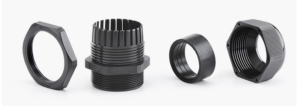

Product Introduction
the use of Shangda SDA cable waterproof connector, so that long-term exposure to outdoor products to obtain reliable waterproof sealing, effective solution to the large current, resistance heating, contact pressure and other factors. In addition, the normal electrical connection is ensured in case of rainstorm, and the normal electrical connection is maintained in the process of earthquake resistance during vibration, thus effectively preventing the advantages such as flash break or poor contact
| Product Performance |
| screw tooth specification | Metric Tooth M |
| product material | Part A.C.E.F is made of UL approved nylon PA66 (fire rating UL94V- 2); (Can be customized UL approved V-0 fire rating nylon raw materials); Part B.D is made of EPDM weather-resistant rubber; (can be customized cold, high temperature rubber; high acid and alkali resistant, chemical resistant and corrosion resistant rubber). Protection level: 1P68-10 |
| Product Certification | European CE certification, European ROHS certification |
| protection level | within the specified bayonet range, and use the O-ring seal to tighten the tightening head to IP68-10 bar pressure. |
| working temperature | static-40C to 100C, or instantly heat-resistant to 120C; Dynamic-20C to 80C, or instantly heat-resistant to 100C. |
| thread length | short threads are suitable for use in openings in thin plates or on equipment with internal threads, and long threads are suitable for engaging thick plates. Thread extension type can be customized. |
| Product Characteristics | the design of special clamping claw and clamping ring, the cable clamping range is large, the tensile strength is strong, and it can be waterproof. Dust, salt, weak acid, alcohol, oil, grease and general solvents. |
| use method | waterproof connector is a supporting product of the cable. The connector can lock the cable, and the other end can be connected to the equipment box, or it can be connected to the electric equipment with internal threads at the inlet and outlet according to the selection of threads. |
| More choices | can be customized according to the actual needs of customers. Need to order when welcome to inquire. |
| Product Size Chart | |
 |
 |
| nylon metric thread type M series | |||||
| Product Number | thread specification AG | Applicable cable (mm) | thread outer diameter (mm) | thread length GL(mm) | Wrench Diameter (mm) |
| SD-M12 * 1.5 | M12 * 1.5 | 4-8 | 12 | 7 | 17 |
| SD-M14 * 1.5 | M14 * 1.5 | 4-8 | 14 | 8 | 18 |
| SD-M16 * 1.5 | M16 * 1.5 | 4-8 | 16 | 8 | 20 |
Note: The above test data shall prevail in kind.
